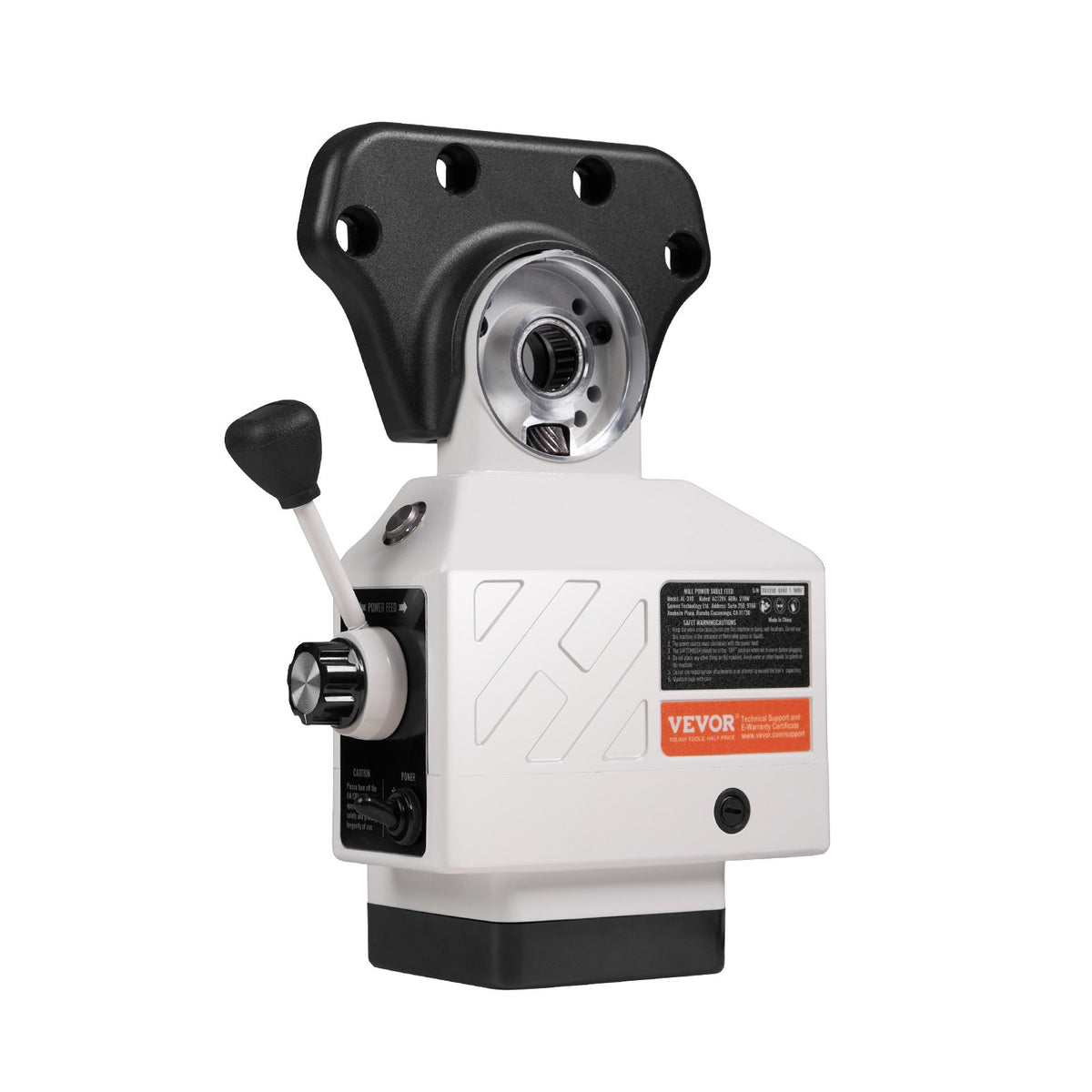

X-Axis Power Feed for Milling Machine, 150 in-lb, 120V

This X-axis power feed for milling machines adds smooth, variable-speed table travel to knee-type mills with a 5/8 in end shaft, running on standard 120V power.

• Torque: 150 in-lb (16.9 N·m) rated

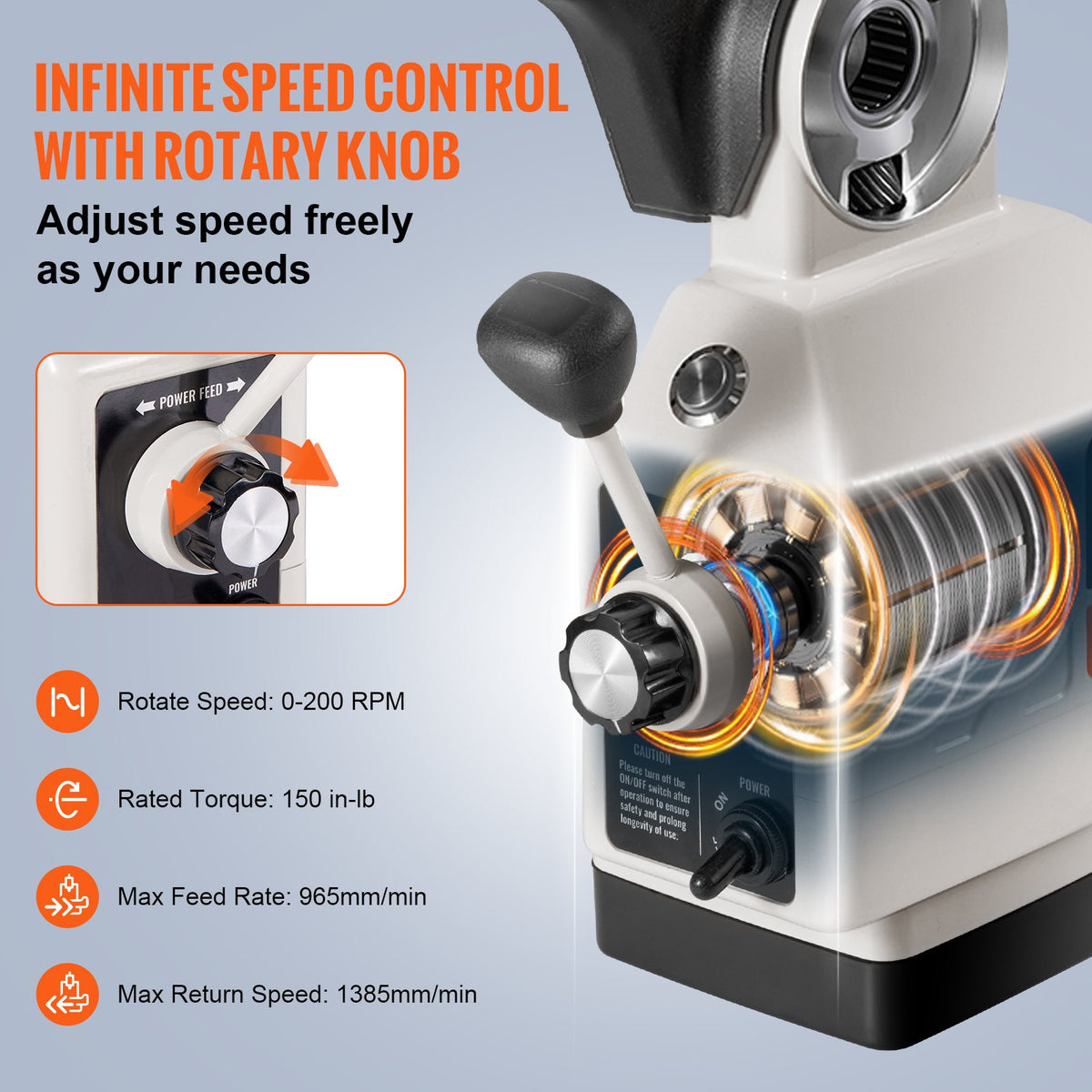

• Speed: Variable 0–200 RPM via continuous speed knob
• Feed Rate: Up to 38 in/min (965 mm/min); rapid return up to 54.5 in/min (1385 mm/min)

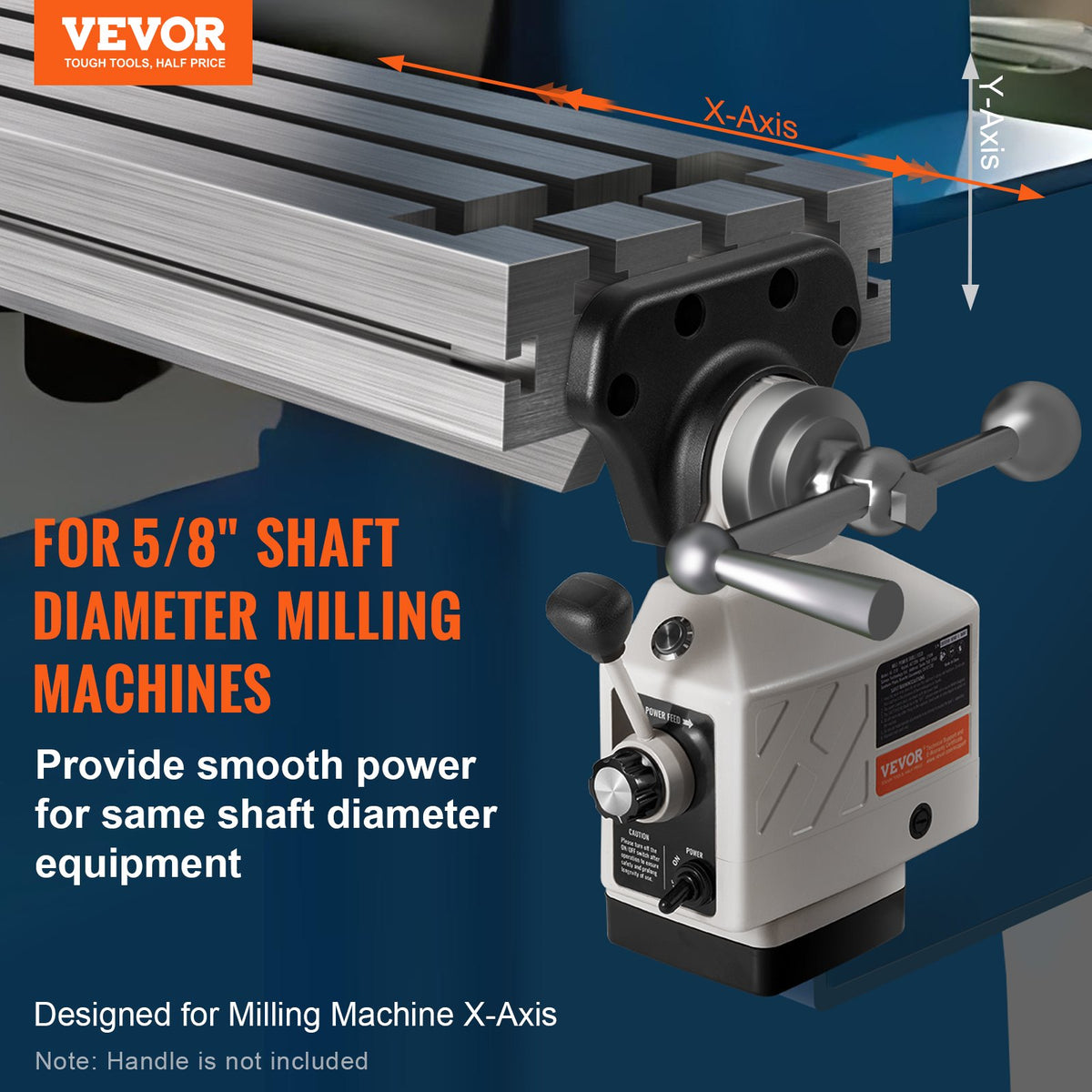

• Fit: Knee-type mills with 5/8 in (15.9 mm) end shaft diameter and matching mounting pattern

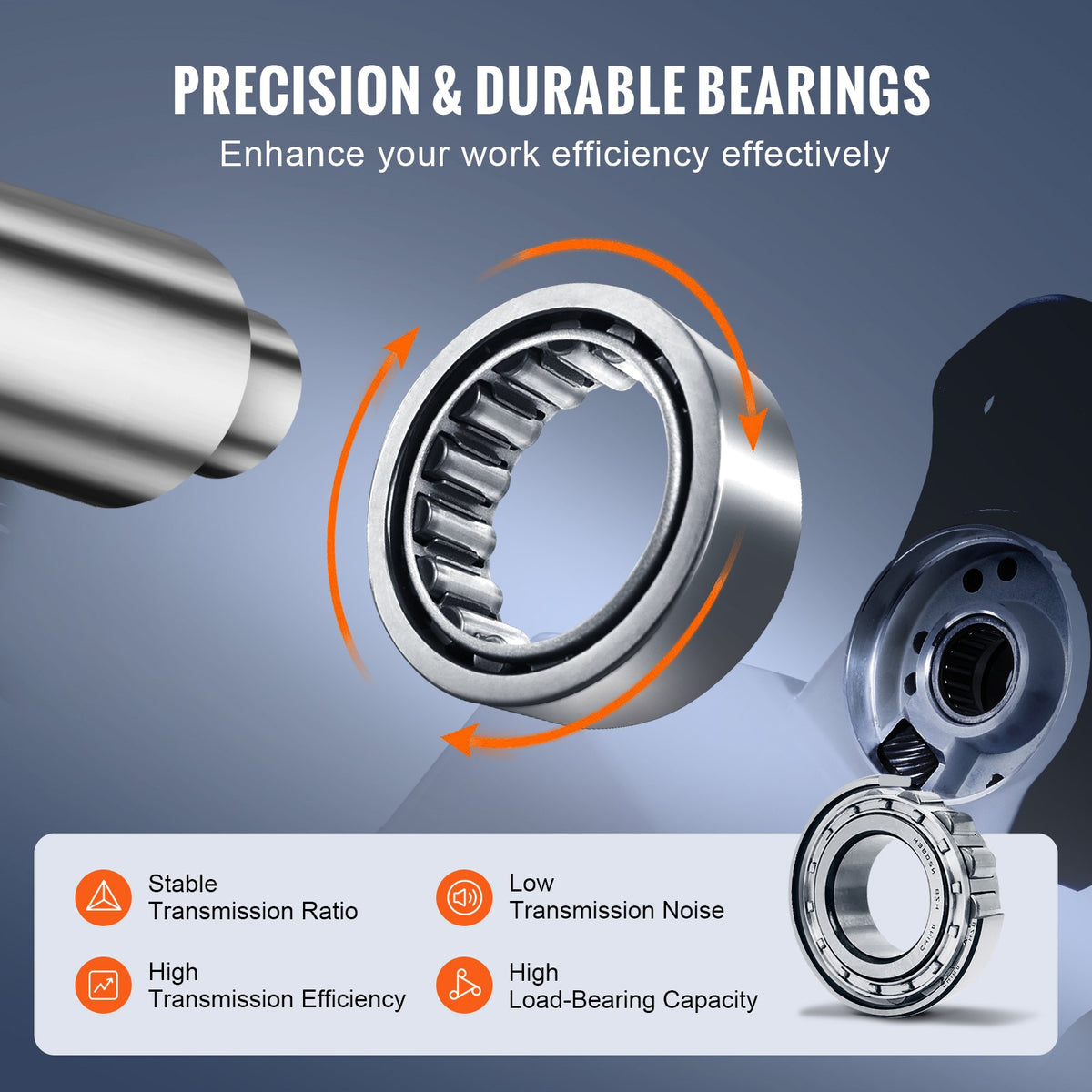

• Gearing: Spiral bevel gears with protection device against collision or sudden reversal

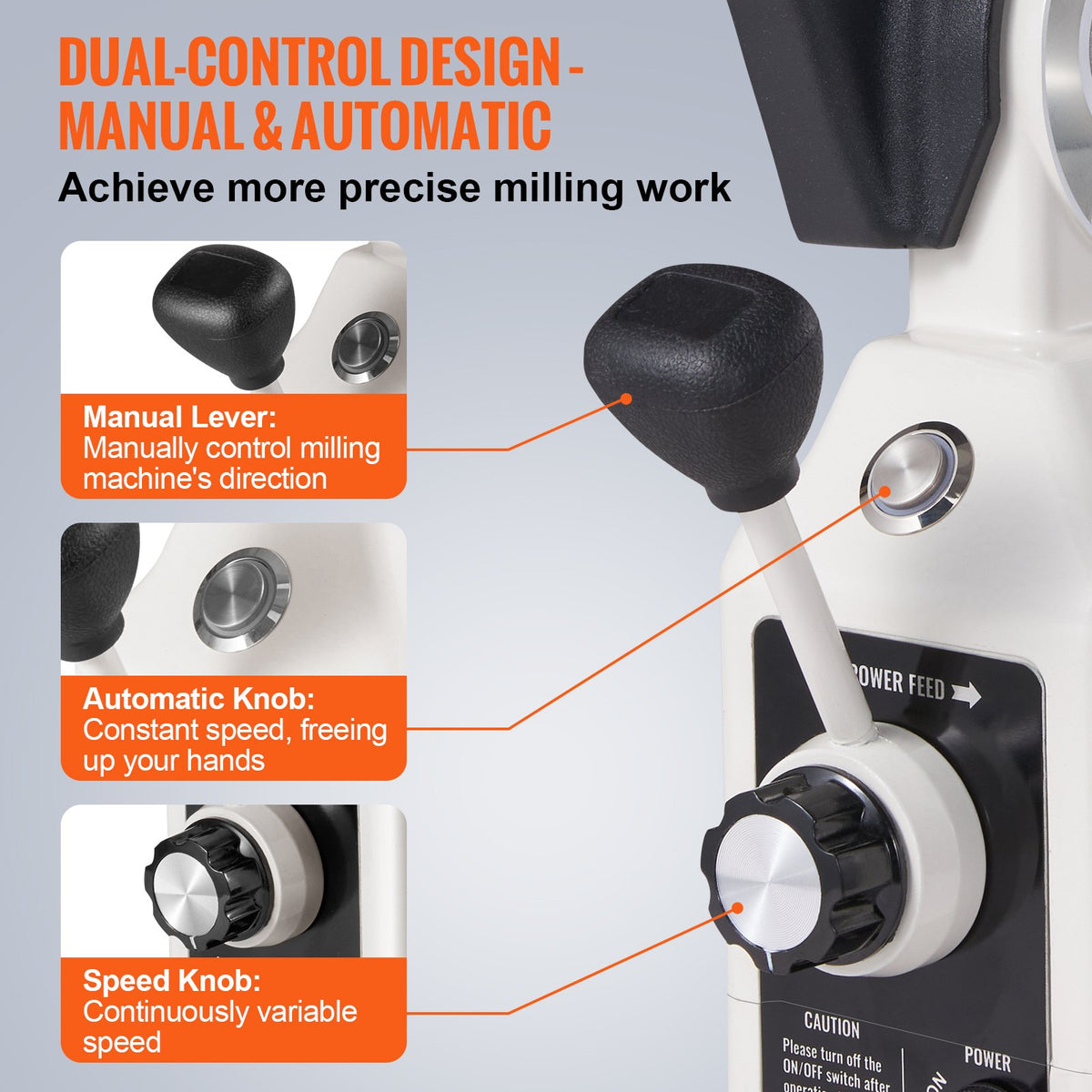

• Modes: Manual button control or automatic constant-speed operation
• Power: 120V

Typical delivery 3–8 business days.
