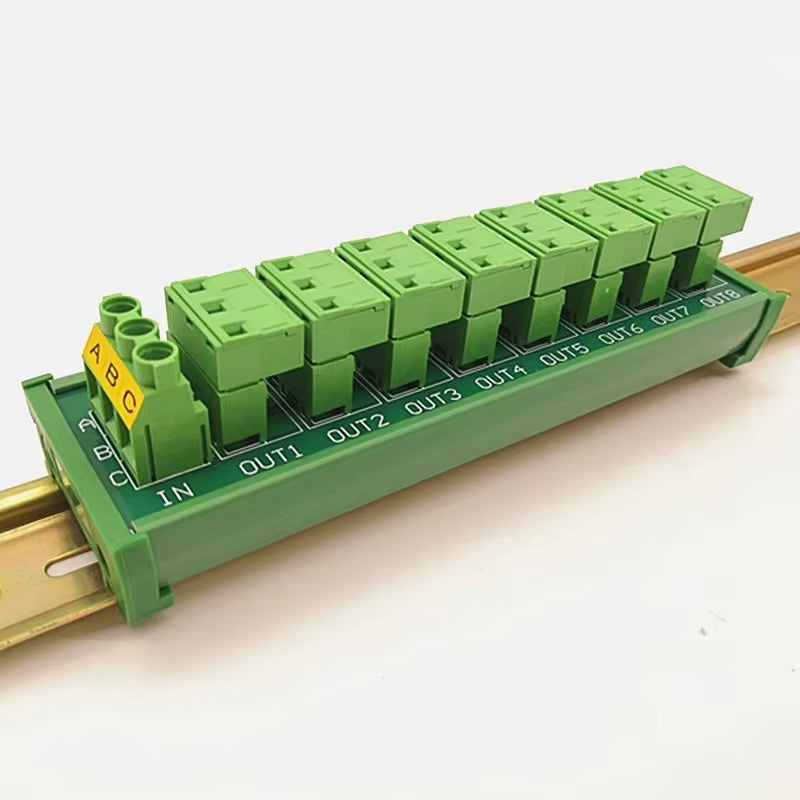

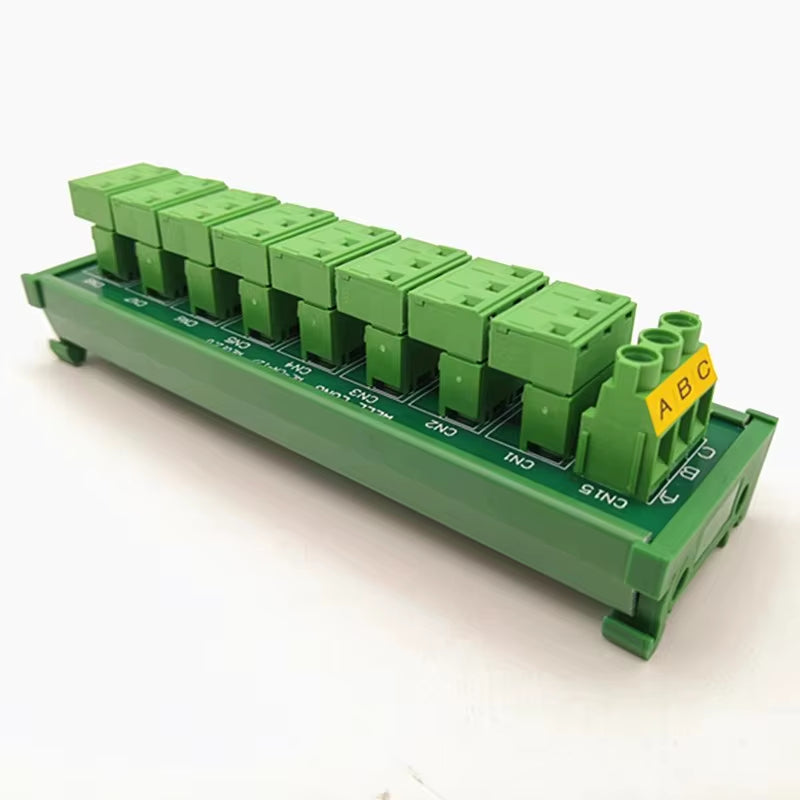

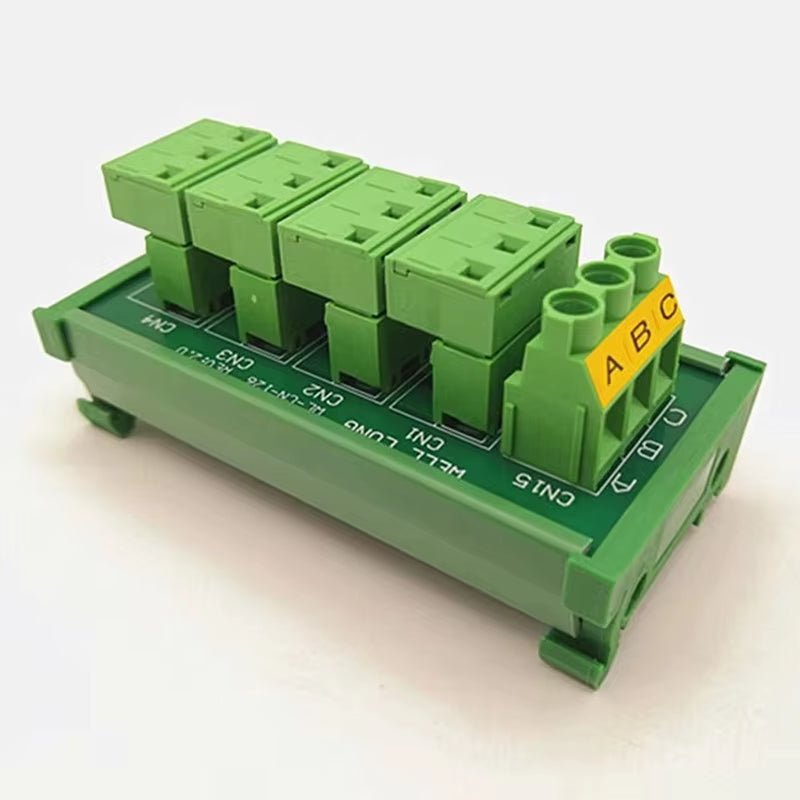

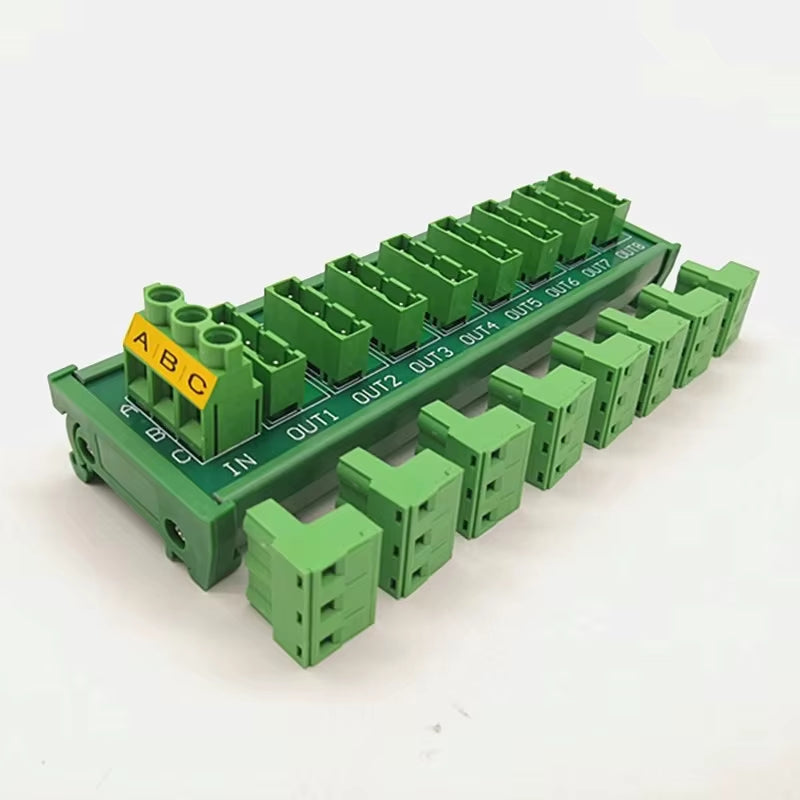

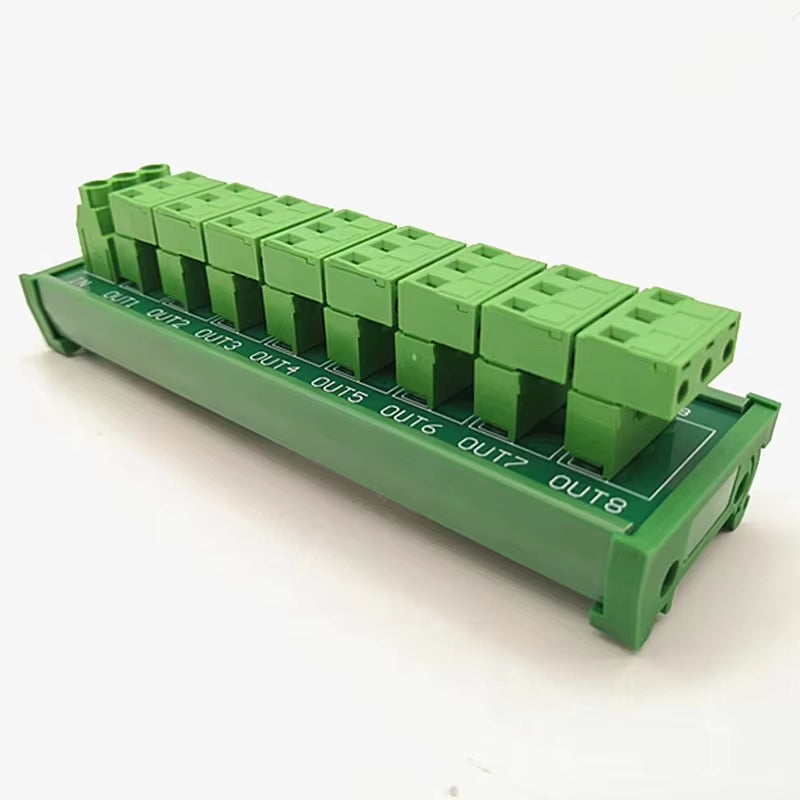

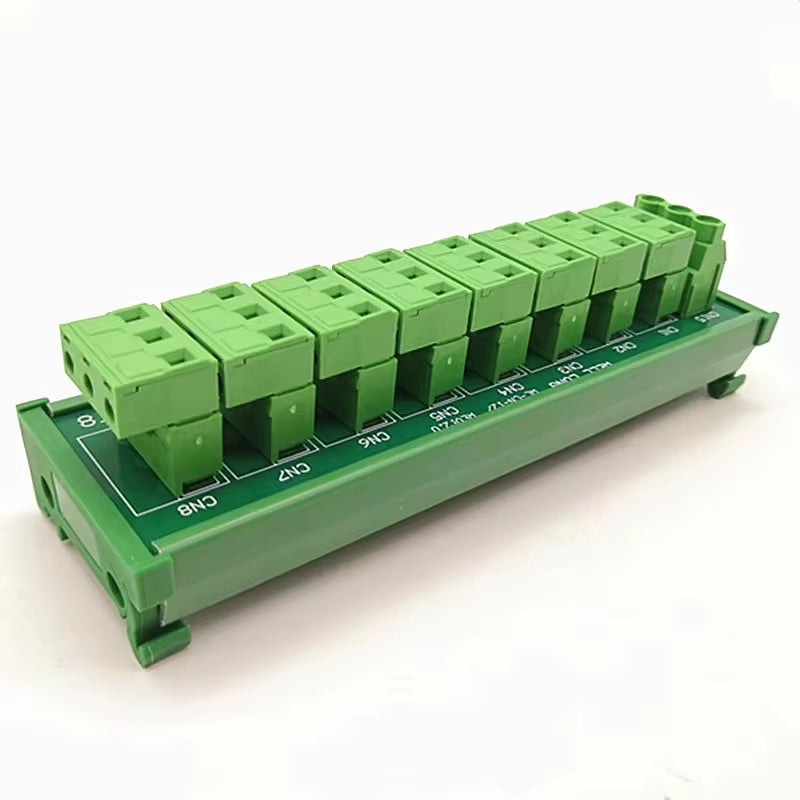

DIN Rail Distribution Terminal Block, Pluggable 3-Row Module

This DIN rail distribution terminal block splits one 3-wire input into multiple pluggable outputs, keeping control panel and enclosure wiring neat and easy to service.

• Sizes: 4 x 3 or 8 x 3 output positions
• Input: 30A, 300V per position, accepts 26-10 AWG wire
• Outputs: pluggable screw terminals, 20A, 300V per position, 28-12 AWG wire
• Pitch: 0.3 in (7.62 mm), strip length 0.28-0.31 in (7-8 mm)
• Mounting: flame-retardant nylon carrier for 1.38 in (35 mm) DIN rail
• Contacts: brass pin headers and cages with M3 zinc-plated screws

Typical delivery 7–15 business days.
